Product Details

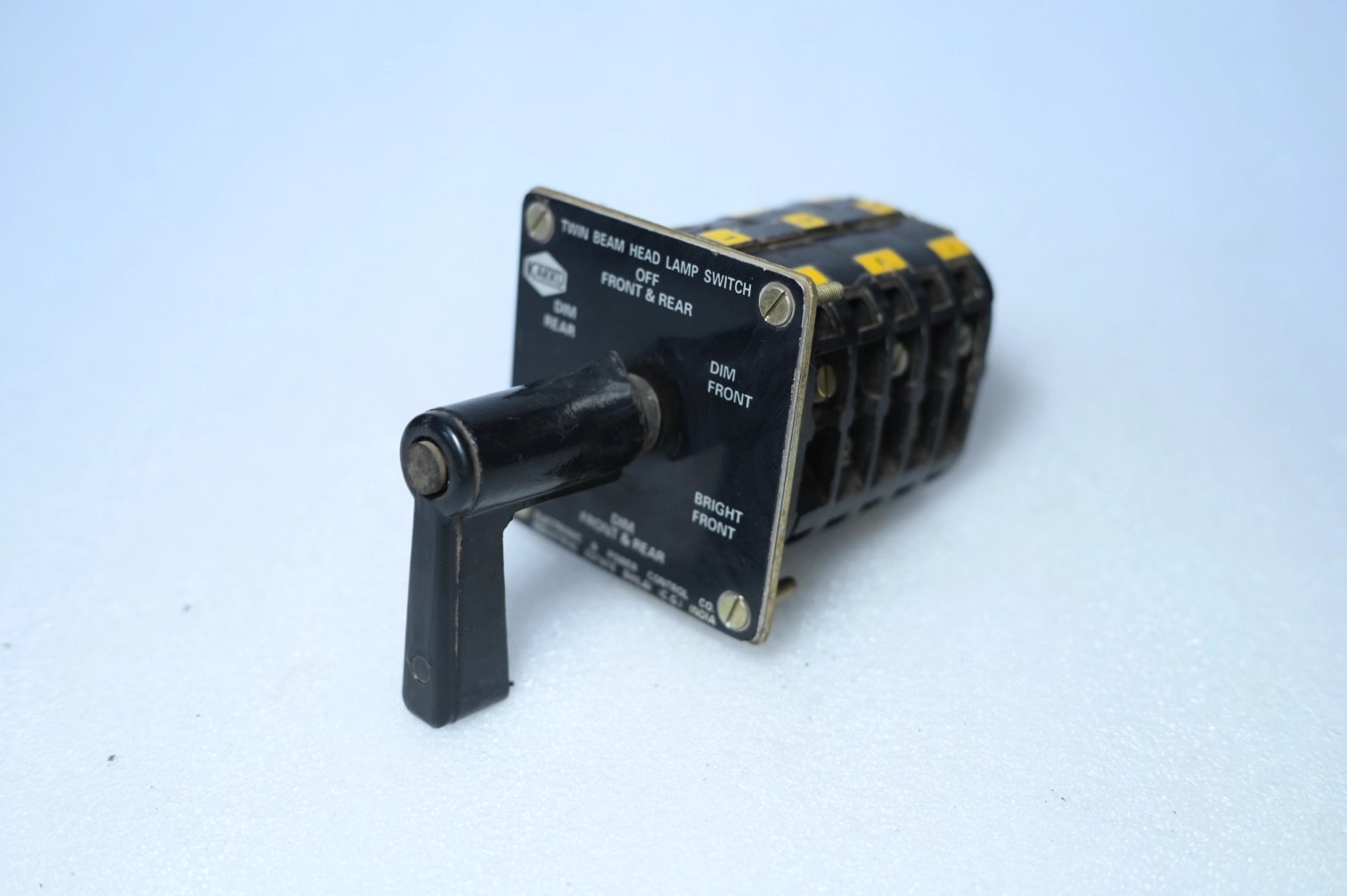

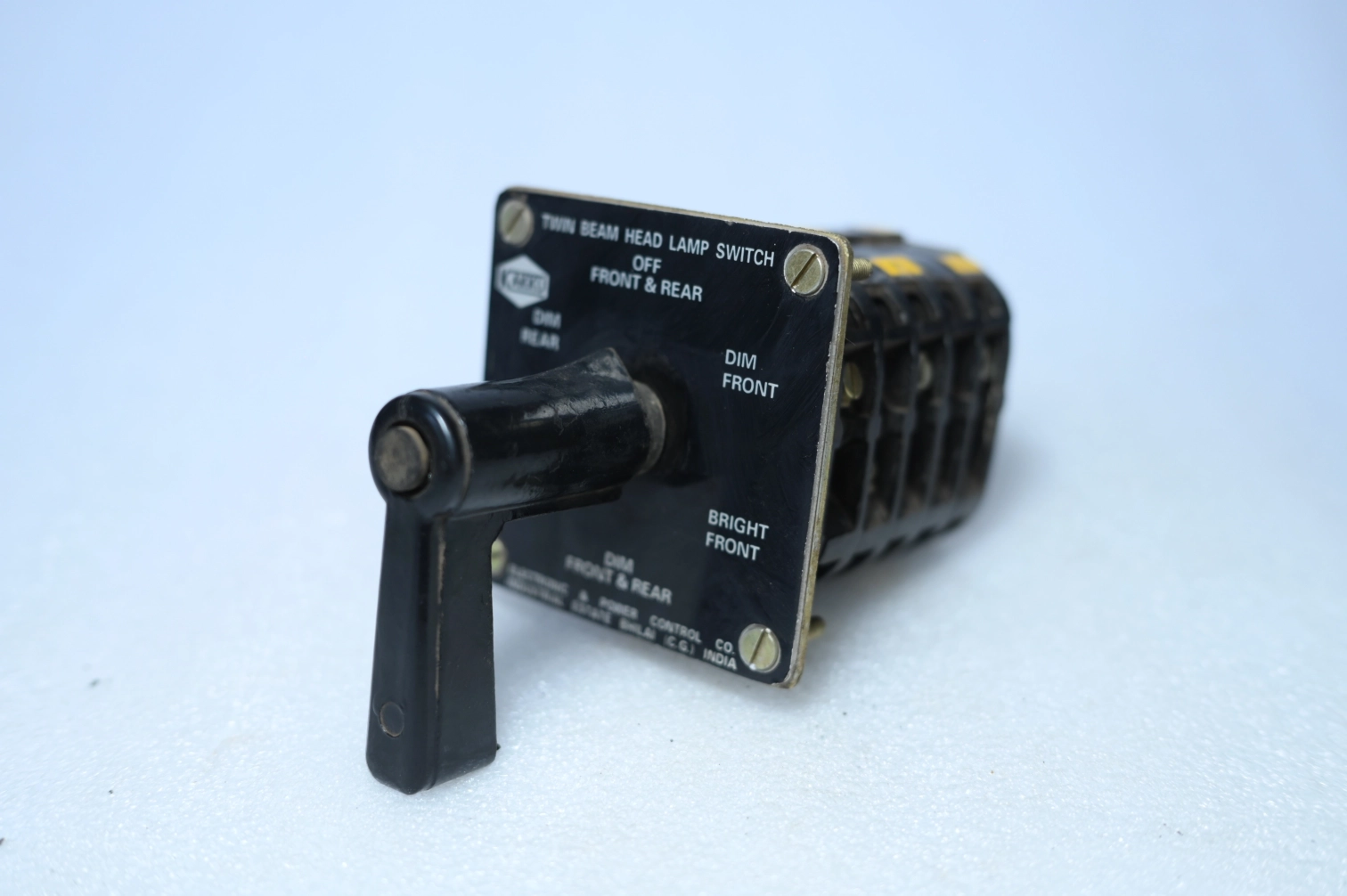

Control / Programmer Switches

Description

Suitable for Mobile Equipments ad Locos besides other applications such as Motor Control Centers, Control posts & pulpits,.. etc.+Adaptability for easier and faster installation on existing mounting of other reputed makes.+Action / Version /- Stayput / Spring return design / With lost motion device (memory contacts).+Rated continuous current 16 Amp t 25 Amp/.+Rated operated voltage 500V, 50Hz or 220V / 440V DC.+Breaking current at 220V D (L/R Less than or equal to 0.1 Sec) ranges from 1.25Amp to 1.75Amp.+Rates duty : 600 on load operating cycles per hour.+Type of Handle : Pistol grip / oval shaped.+Available in open execution or with the dust proof enclosures.+High degree of reliability is ensure.
